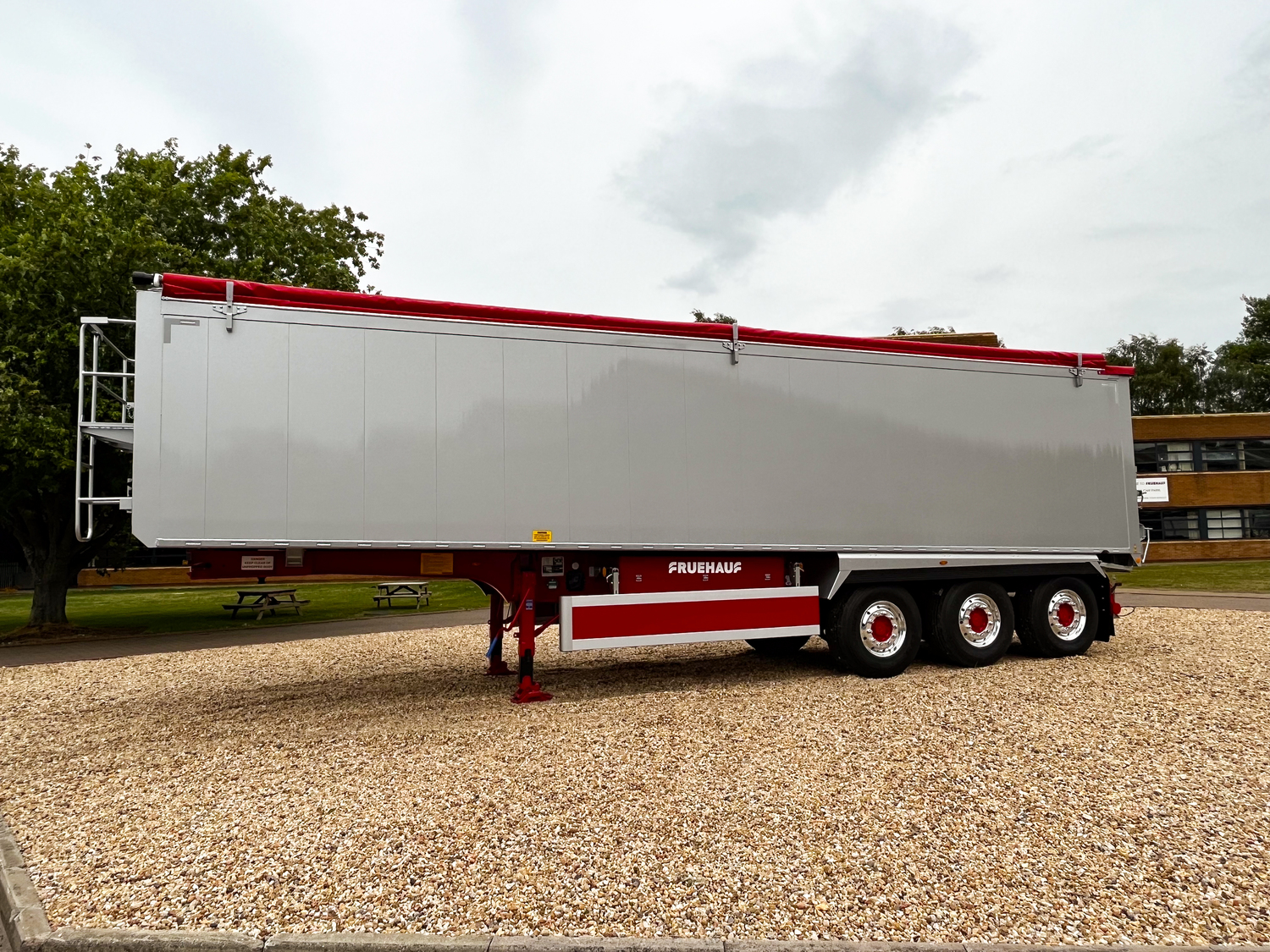

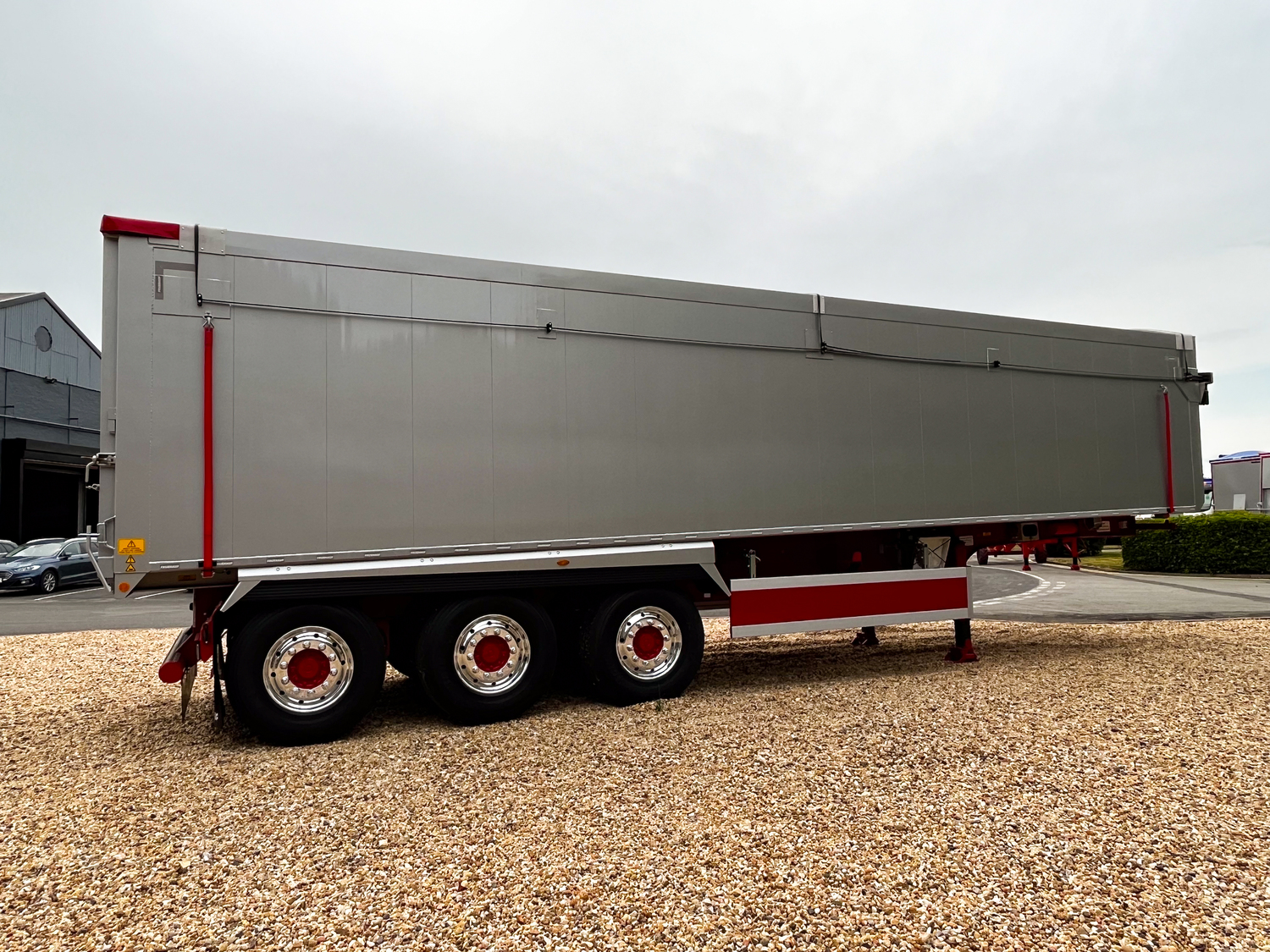

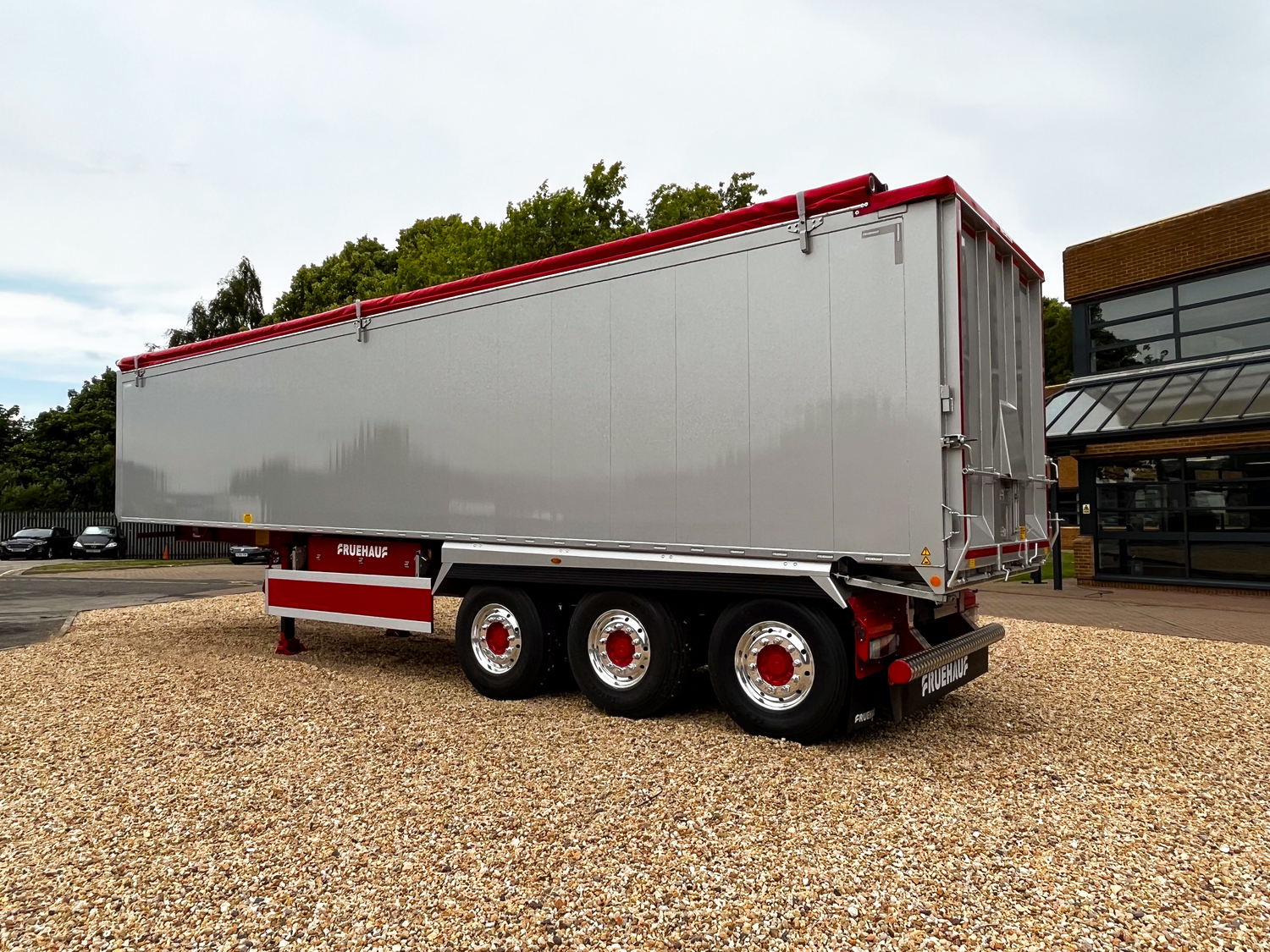

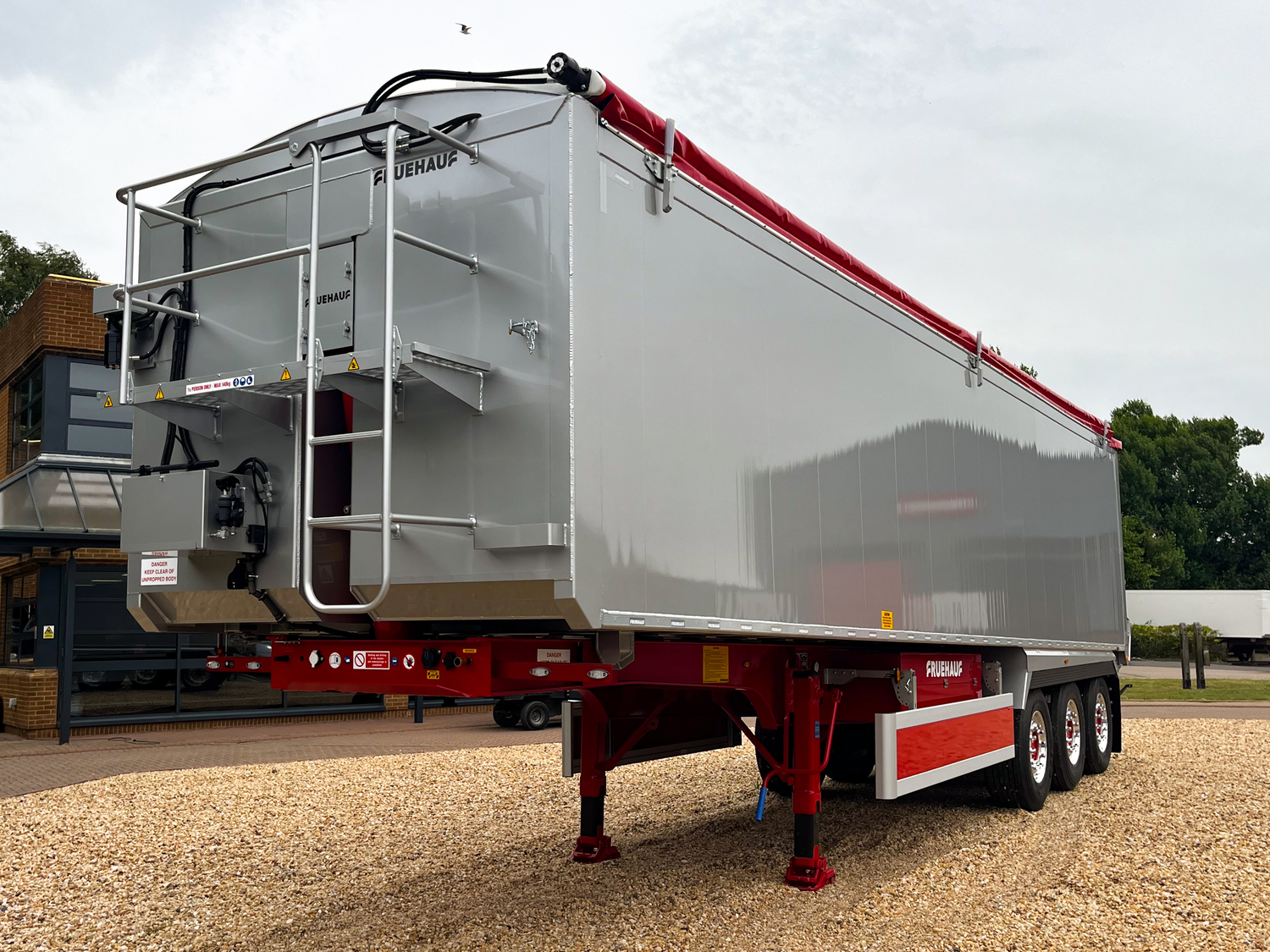

Ready to Book: Fruehauf Sloper Smoothside Tipper

  • Overall Length OL 11010
  • Overall Widt OW 2550
  • Beam Centres BC 1180
  • Kingpin Position KP 830
  • Internal Widt IW 2480
  • Axle Track AT 2040
  • 5th Wheel Height FH 1210
  • Internal Len IL 10710
  • Axle Centres 1&2 AC1 1310
  • Landing Gear Pos. LG 2400
  • Body Height BH1 1900
  • Axle Centres 2&3 AC2 1310
  • Wheelbase WB
  • Body Height BH2 2200
  • Lift Axle YES
  • Neck(Inc. Rubplate) ND 400
  • Rear Overha RO 510
  • Cubic Capacity (Yrds) 70
  • Rear Deck Height RD 1310
  • Step Height SH n/a
  • Kingpin 15000 kgs
  • Suspension 24000 kgs
  • Gross Trailer 37500

Features:

Chassis

  • Fabricated "I" beam with 4 deep section box crossmembers at rear
  • 8mm upper coupler with bolt in 2" kingpin at 1000mm from body front.
  • 1180mm beam centres

Axles & Suspensions

  • SAF Intradisc Axles c/w knorr bremse callipers
  • Chrome wheelnut covers
  • dump valve

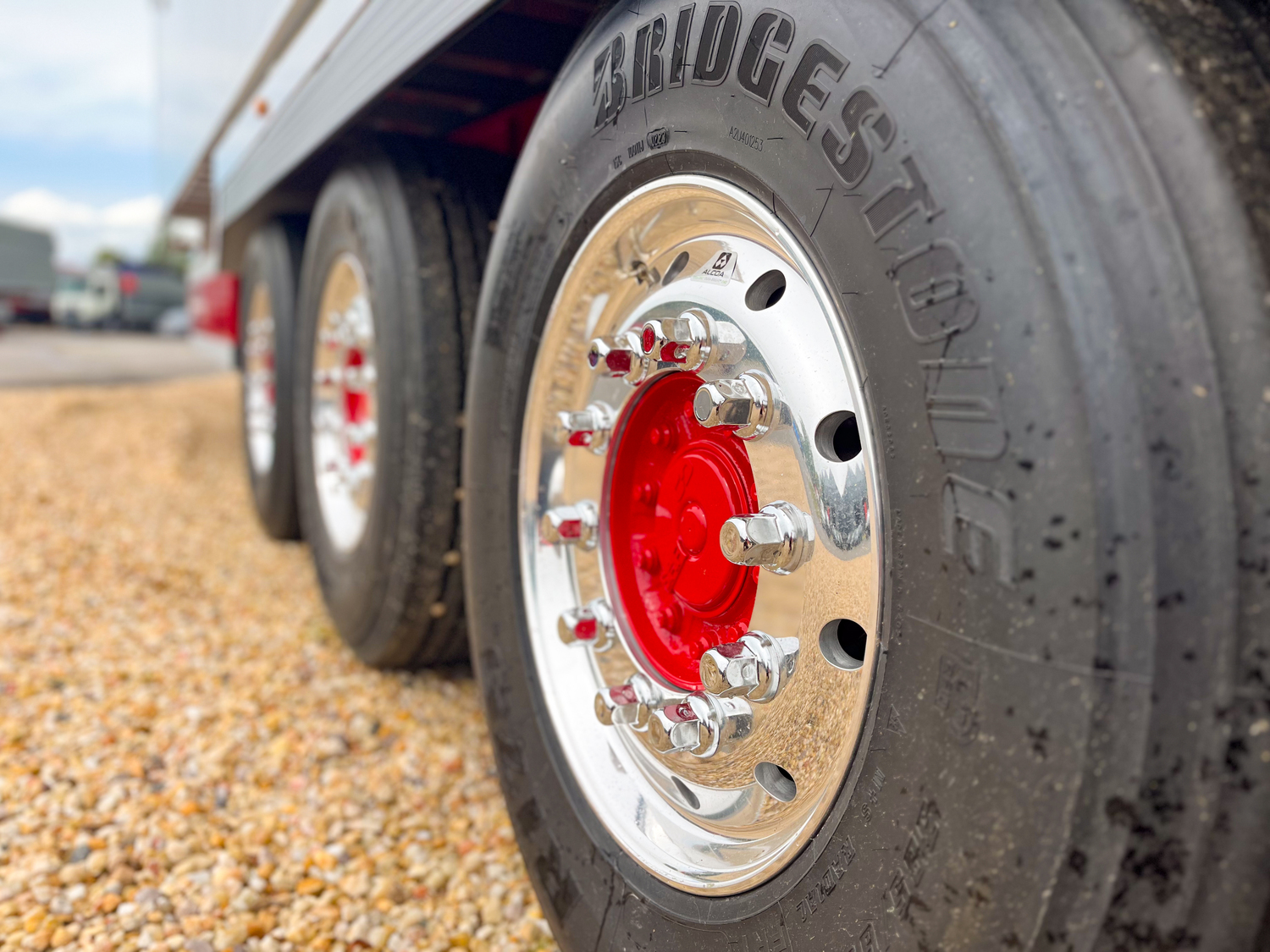

  • Alcoa Durabrite c/w385/65R22.5 Tyres
  • Aluminium mudwings integral with body
  • Dacromet coated wheel nuts

Brakes

  • 2 line air brakes with "C" type couplings on front crossmember. Load sensed system.
  • knorr bremse EBS 2S2M brake system powered through the ISO 7638 and the 24N connectors
  • Roll Stability fitted (activated)
  • Spring brake chambers to axle manufacturers recommendations
  • Aluminium air reservoirs.

Electrics

  • 24V electrical system with 24S, 24N and ISO 7638 permanent connections
  • FASS1 trailer wiring system, rated IP68, with single rear junction box.
  • Rear lights mounted on mudguard brackets on std wheelbase

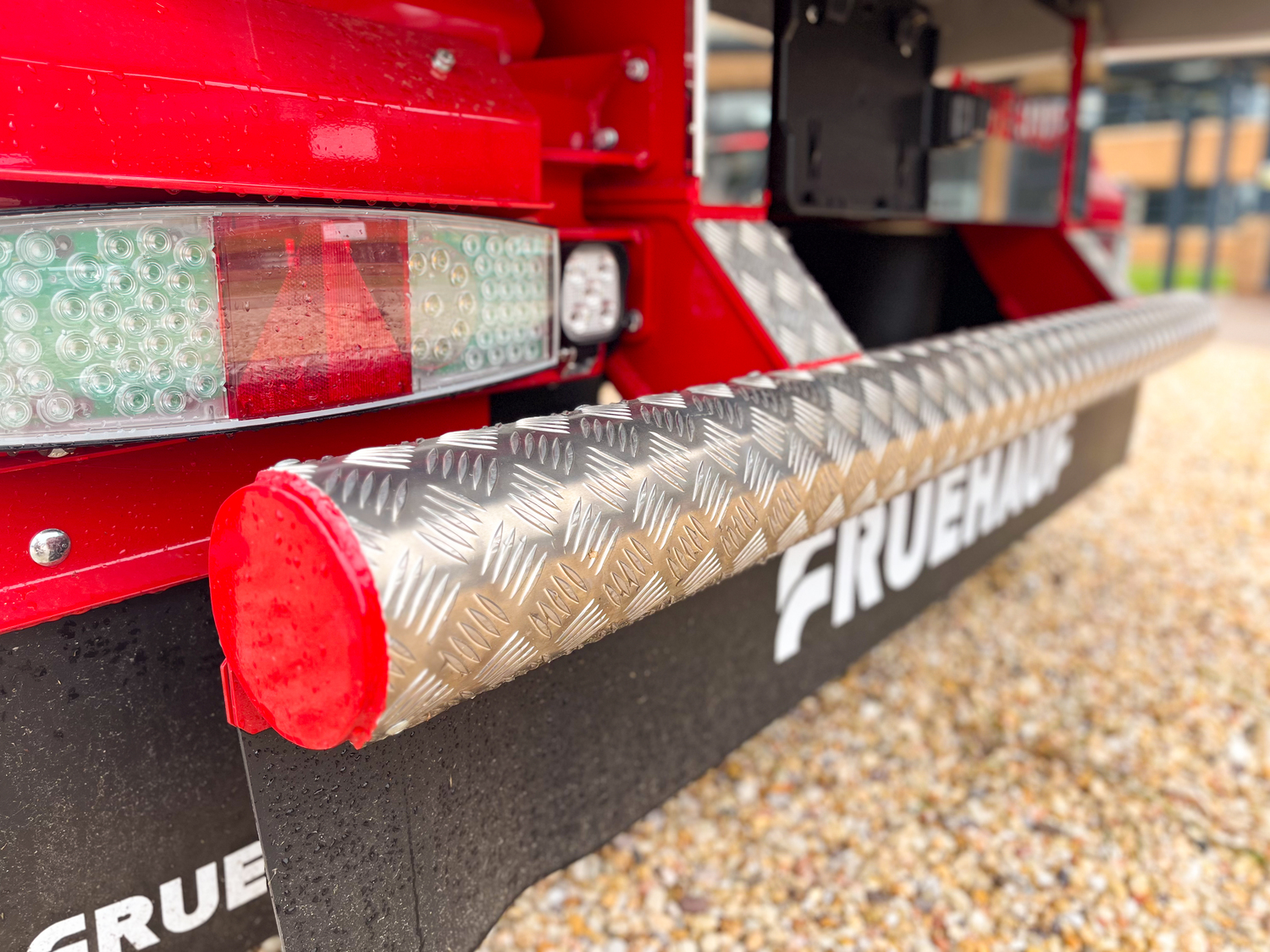

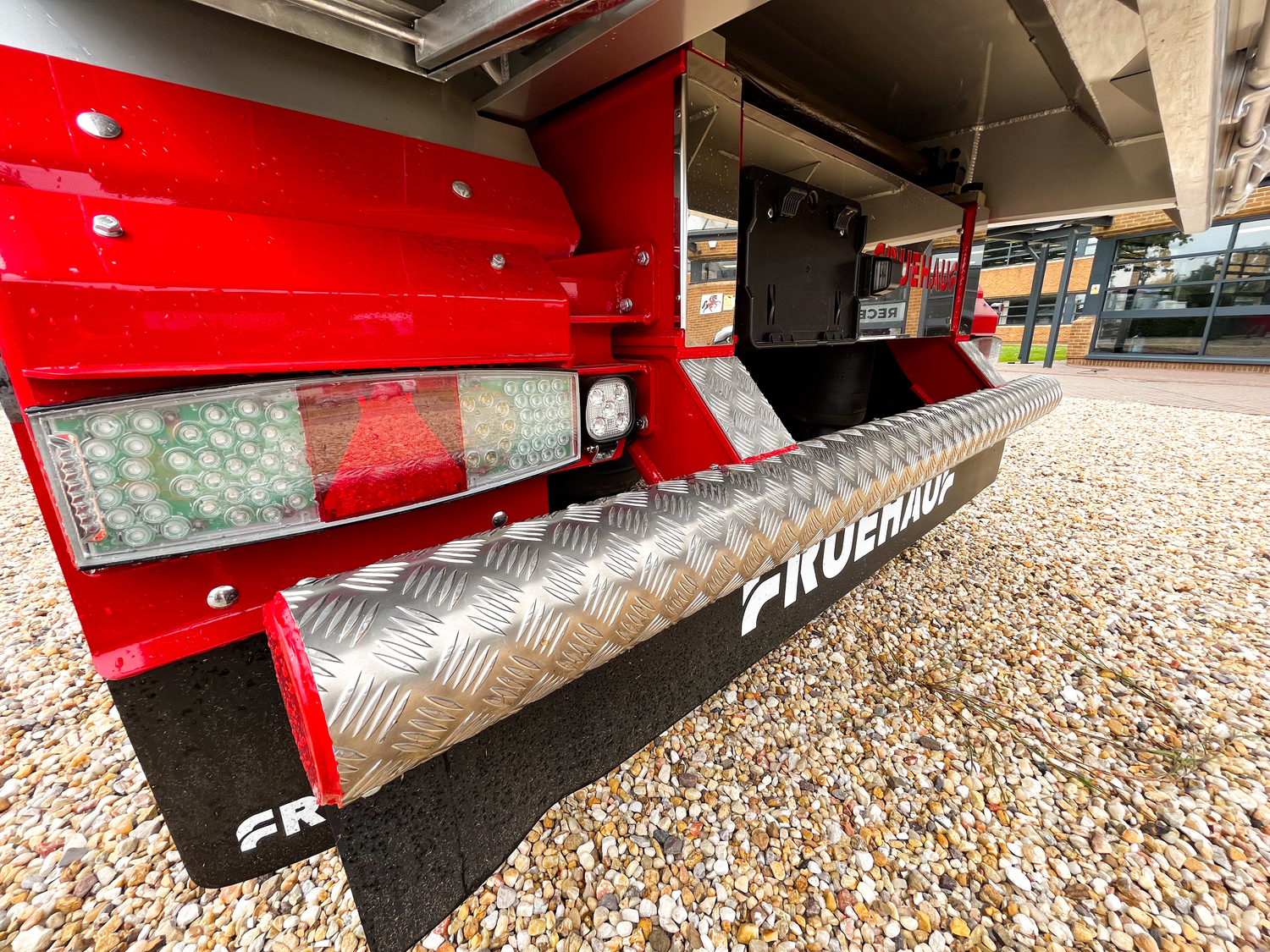

  • Full 756 LED Lights with repeaters
  • 3 LED side markers per side plus "Finger"marker acting also as combined front & rear outline markers.

Ancillaries

  • Plastic number plate holder
  • 2 speed Jost MODUL zero maintenance legs with compensating feet 24 tonne lift cap. 50 tonne static cap

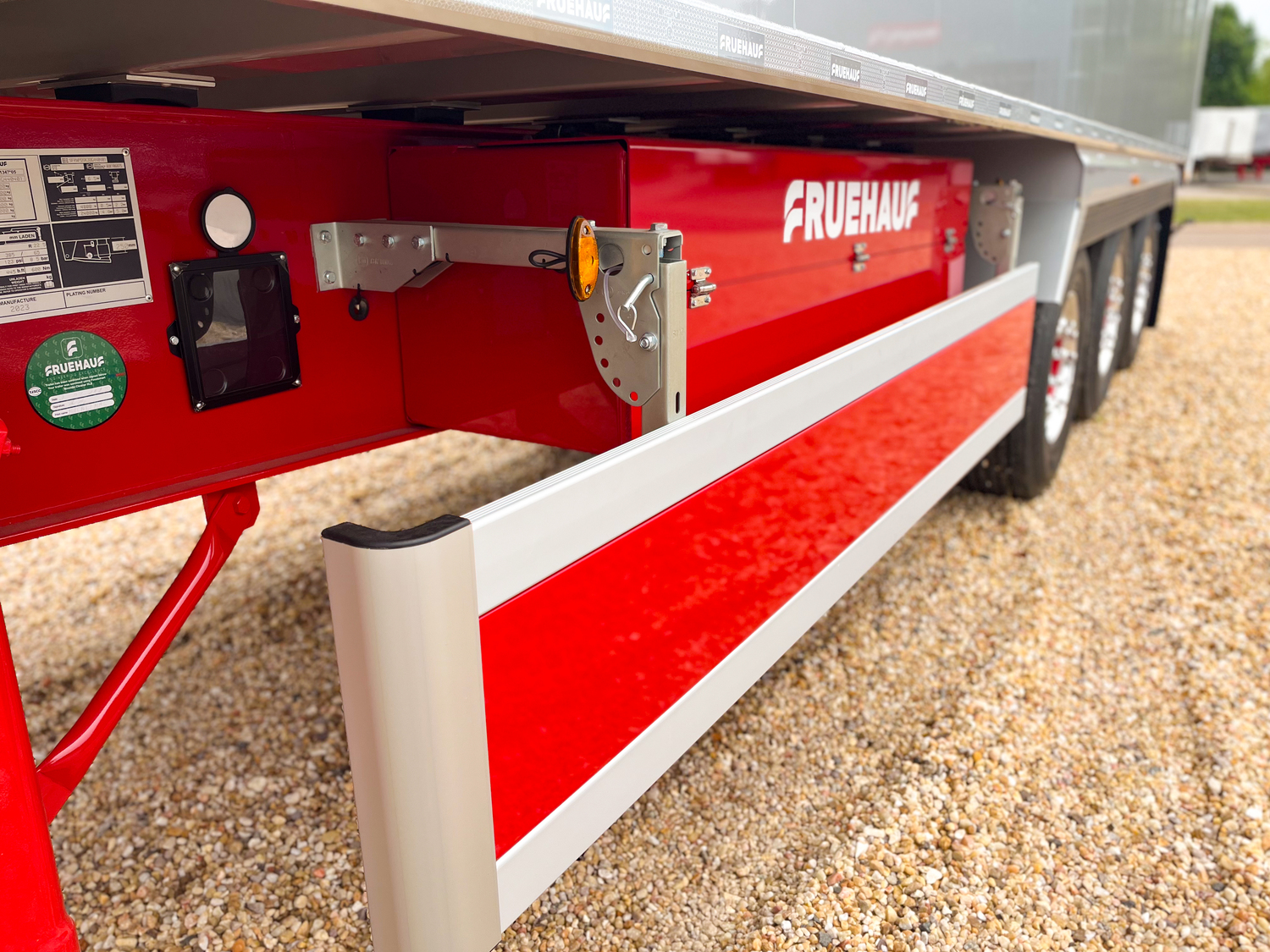

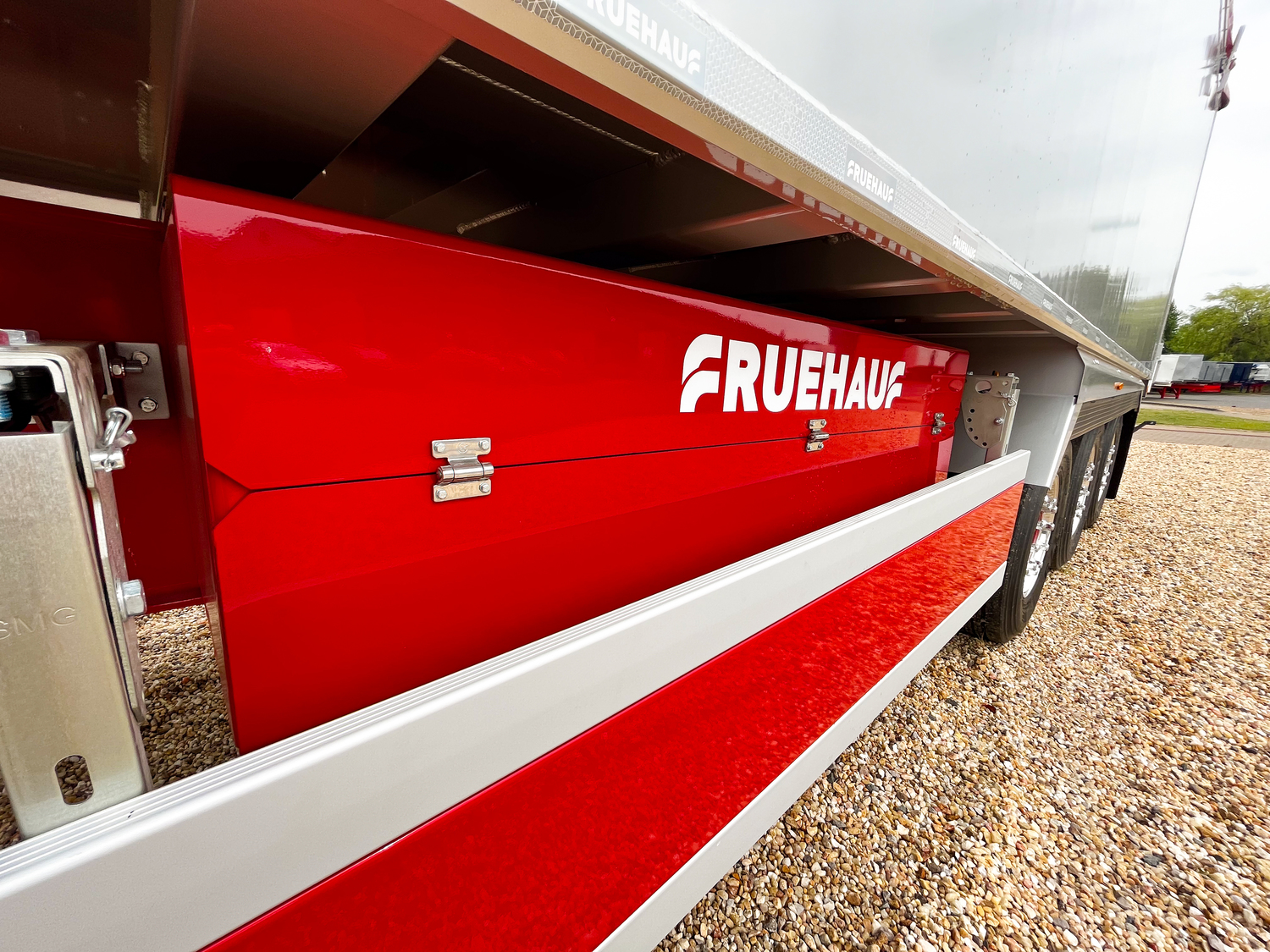

  • Black plastic toolbox, mounted O/S.650mm long x 500mm wide x 480mm deep

Bodywork

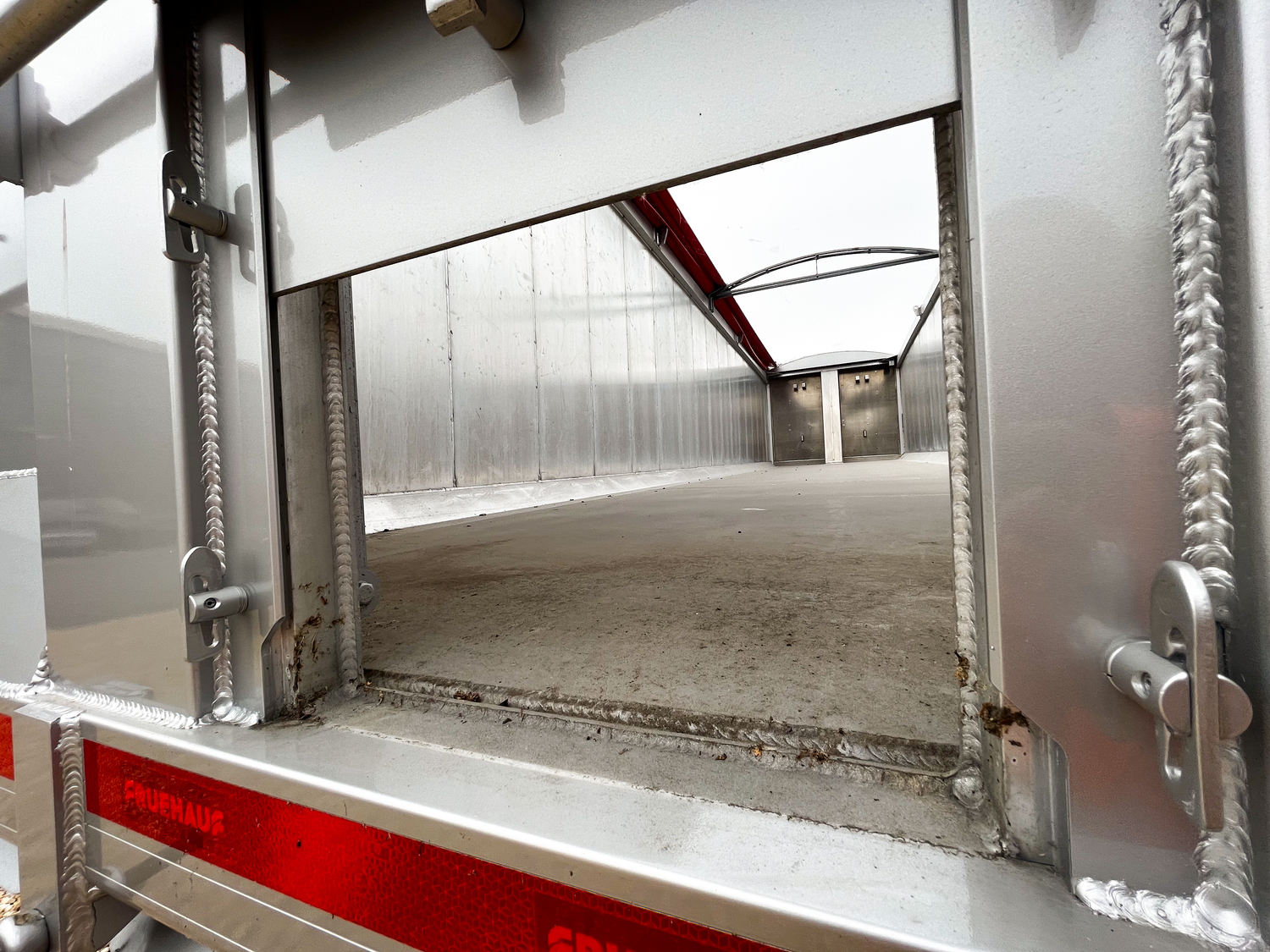

  • Hollow plank, 30mm profile, 2.7mm inside skin, 2.4mm outside skin. Fully welded internal seams.
  • 140mm bottom corner 45deg profile. 170 x 100mm box top rail with 30deg inward shed angle
  • 100 x 120mm channel floor bearers at 490mm pitch

Floor

  • 6mm alloy front to rear
  • 8mm floor in rear 1660m approx

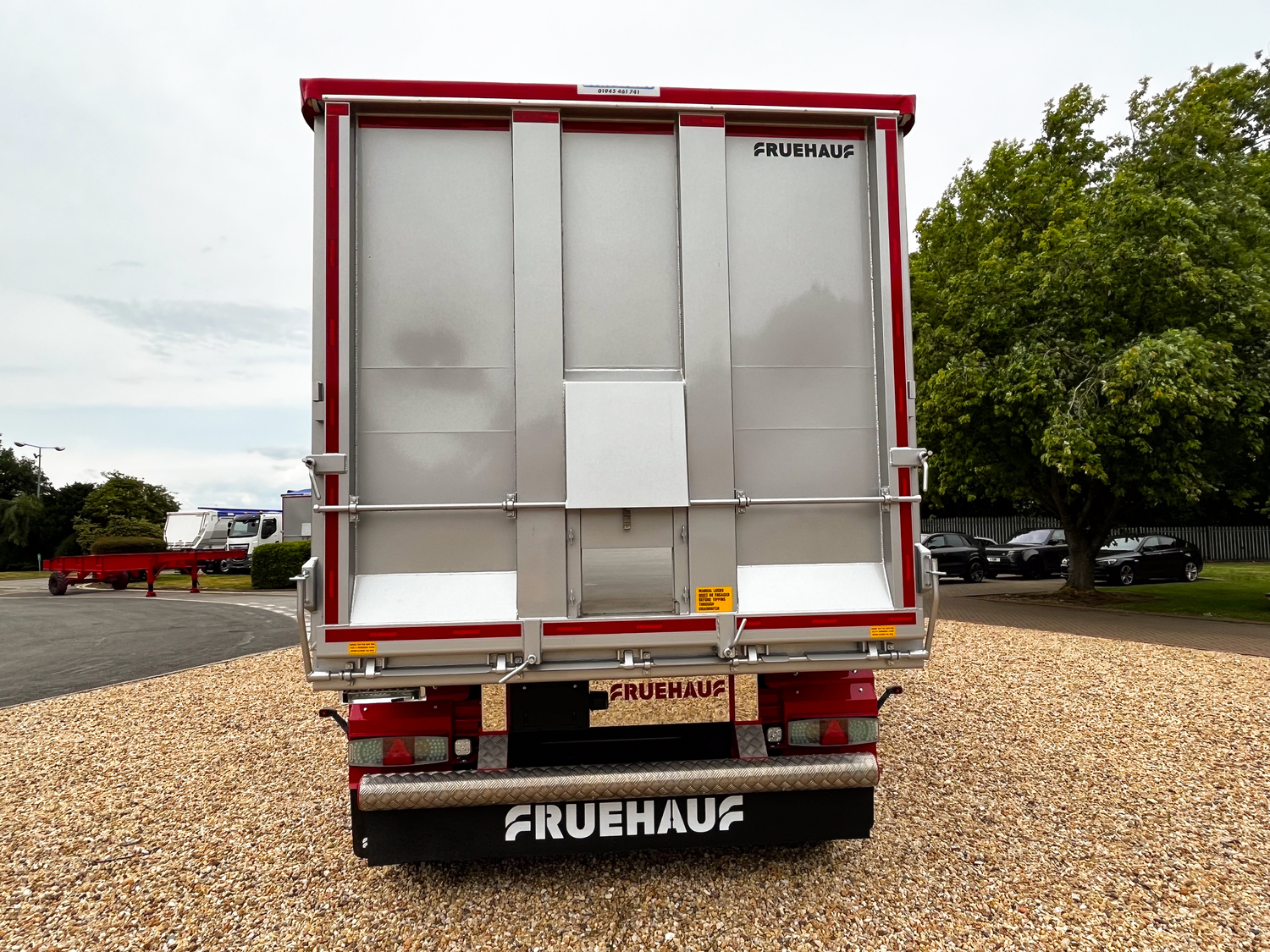

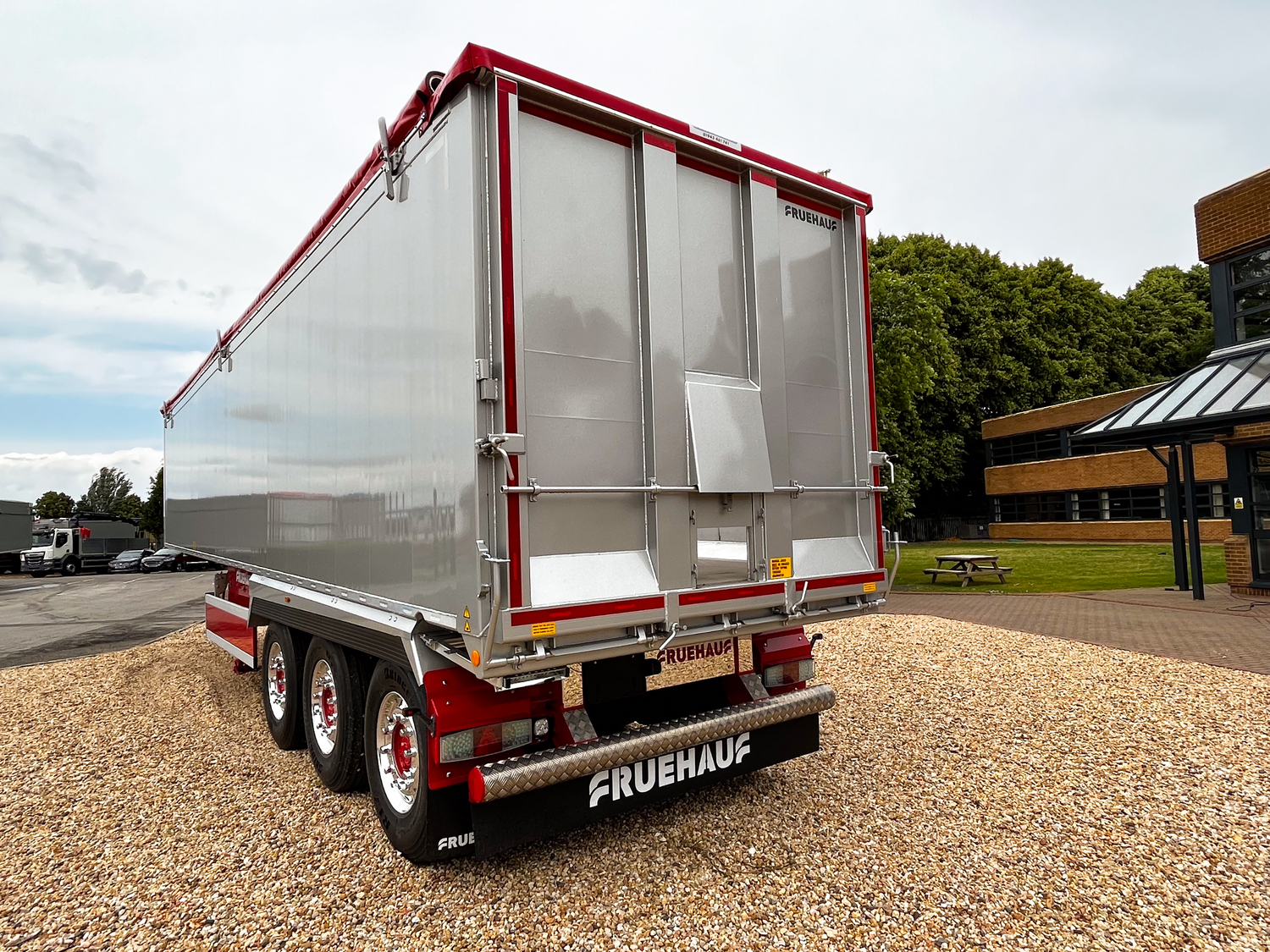

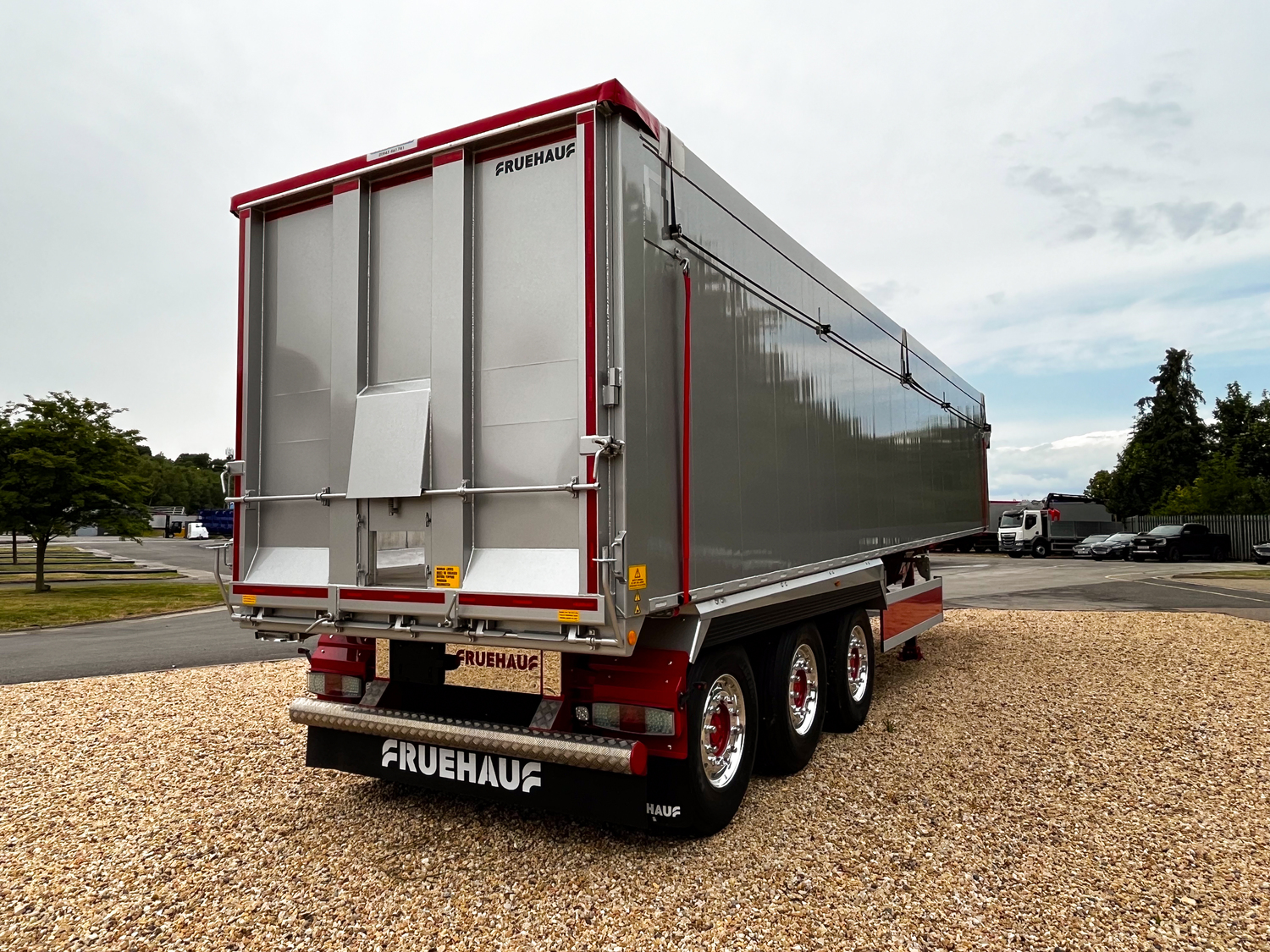

Tailgate

  • 4mm tailgate
  • Tailgate locking bar with 5 tabs
  • Double kick off hinge
  • Air operated tailgate with manual switch and 5 degree sloping rear end
  • No rungs across tail-gate
  • Clamps (one pair at side and one pair at bottom)

Body Variations

  • Rack and pinion operated hatch with aluminium cover. Grain sock included
    shovel rack at front - nearside

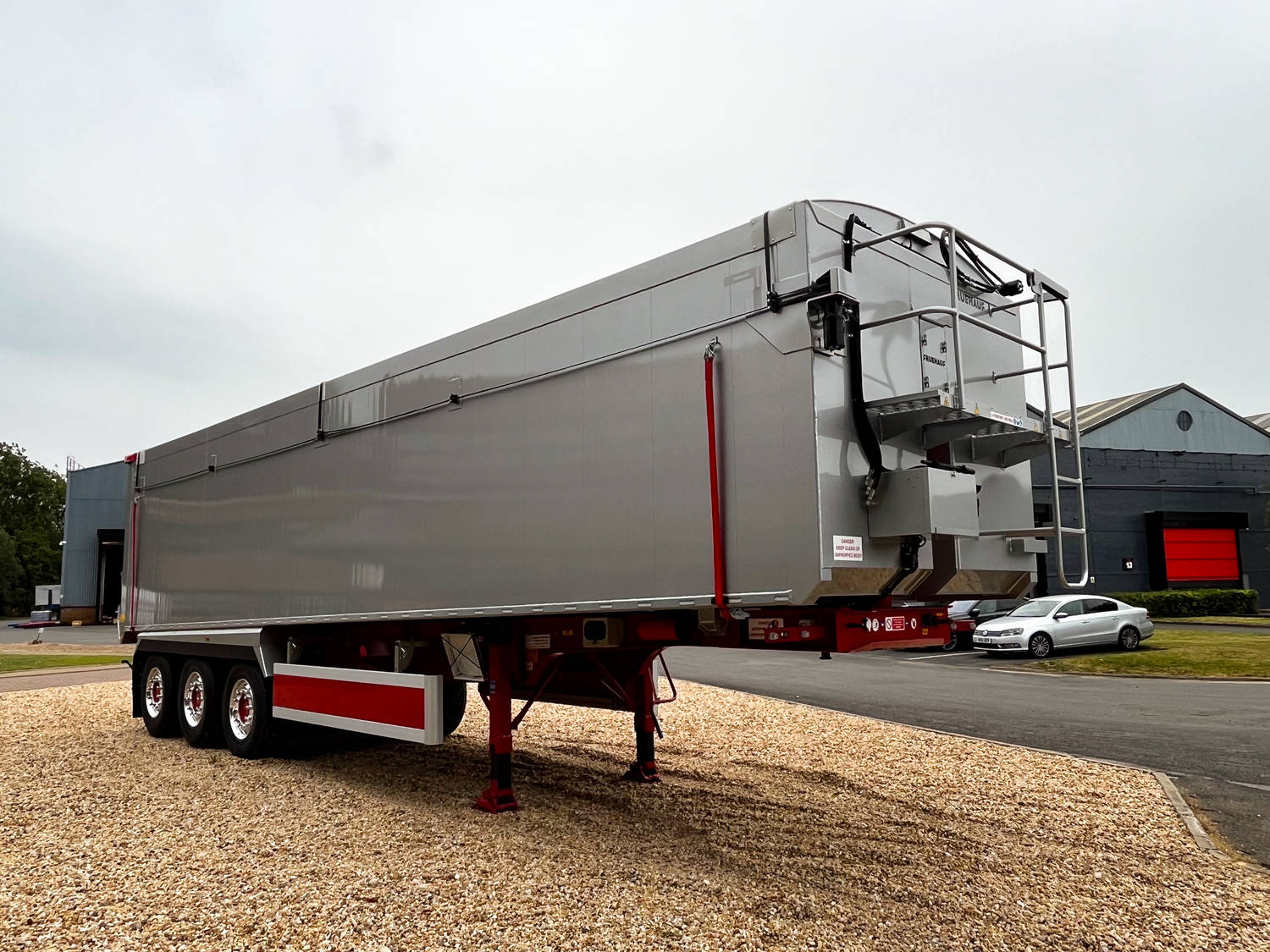

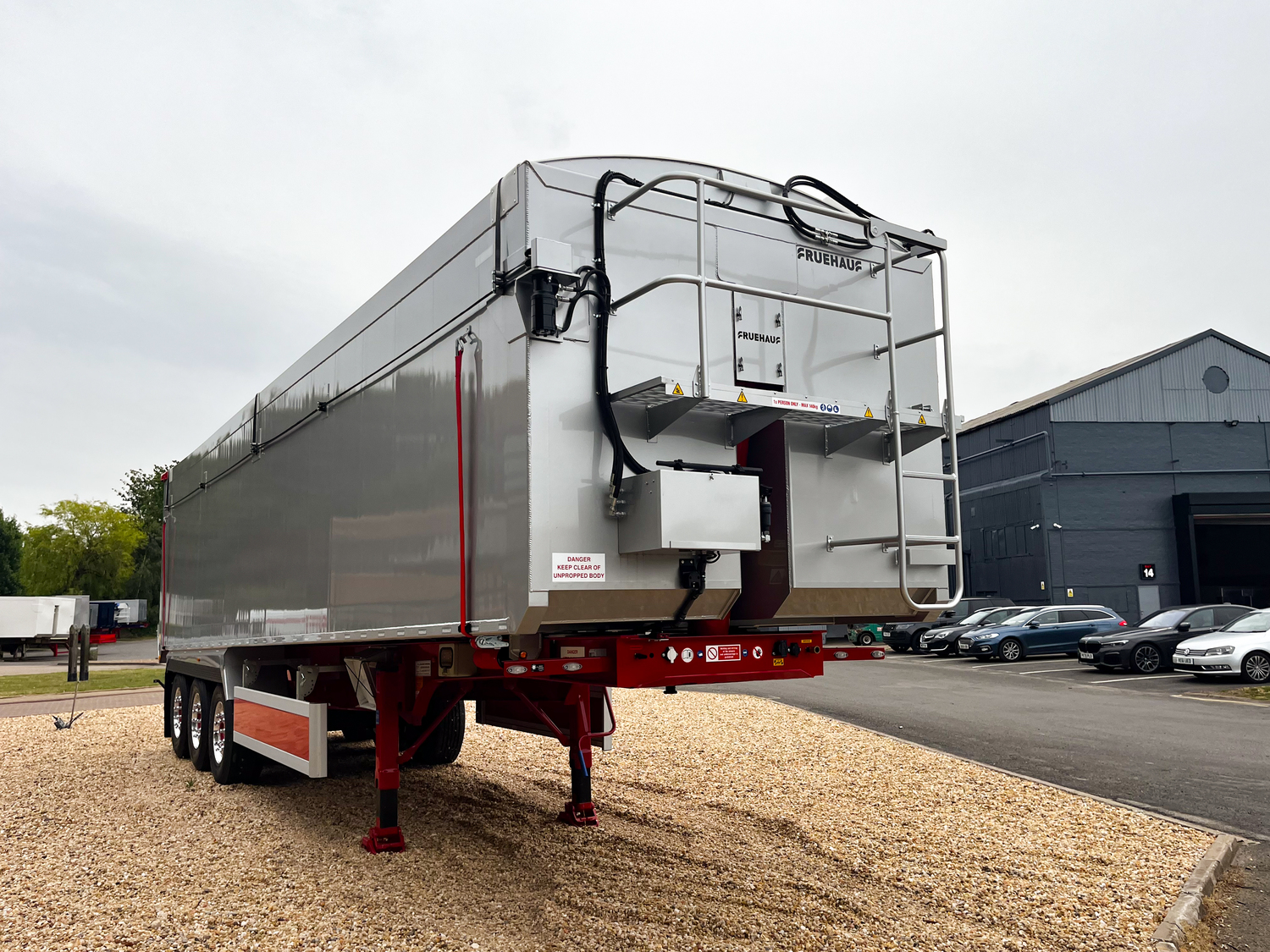

  • Front access-combined ladder and walkway. Ladder on nearside
  • Loose step-ladder and tail-gate prop for access into body, door prop to be external.

Cover Options

  • Rubber side pole protectors

Hydraulics

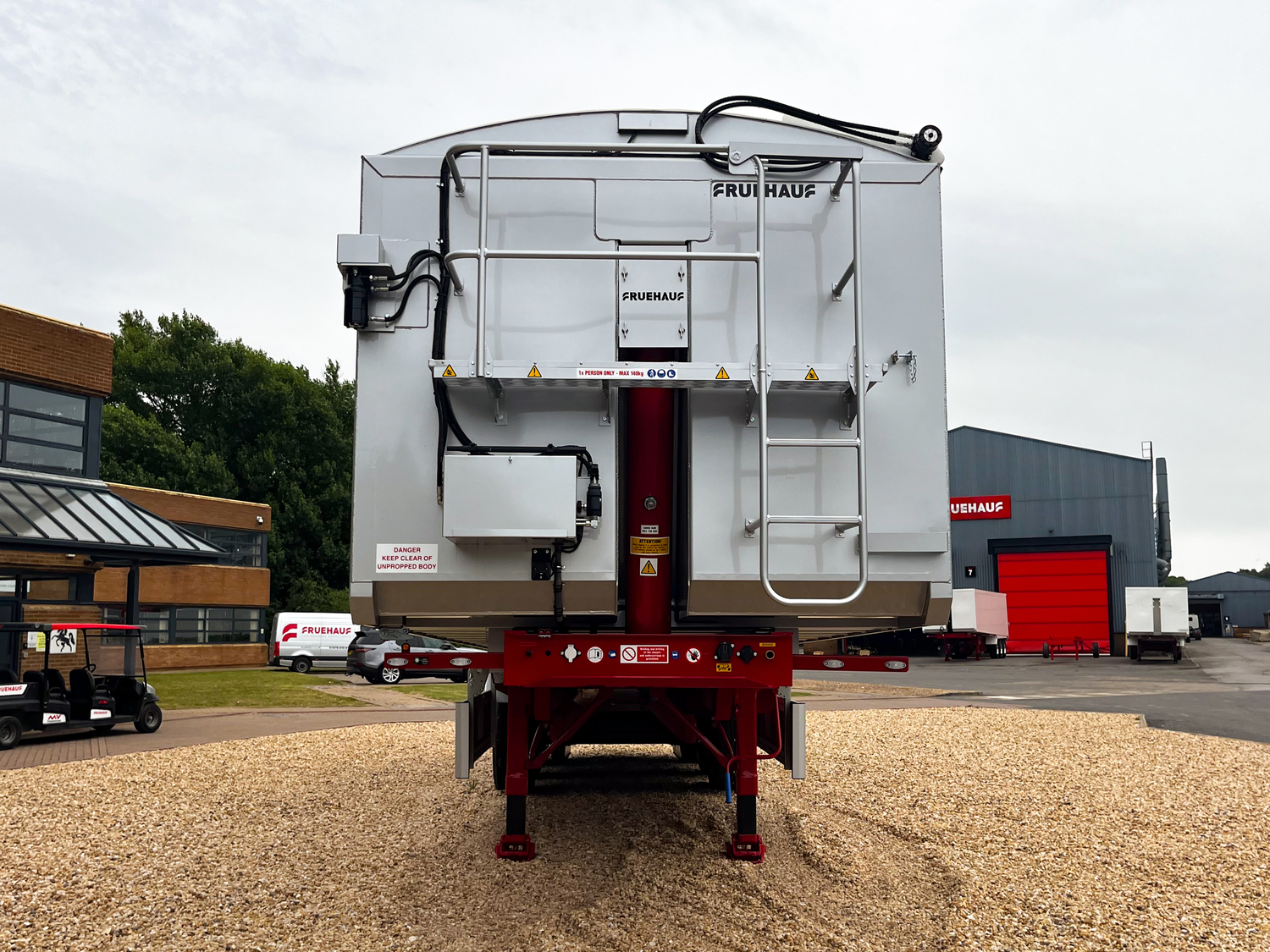

  • Edbro 7033 Single doghouse mounted ram with 1" quick release type male hydraulic coupling
  • Cover flap over top of ram housing

Finish

  • Finish paint chassis and body in 2 pack primer & top coat

The MV Commercial Team
Chassis Information
Make: Fruehauf
Model: Sloper Smoothside Tipper
Body type Trailers
Axle Config: 3 Axle Trailer
Registration: FRU003
Total length 11010mm
Body Information
Body type Trailers
Body width 2550mm
Internal height 1900 - 2200mm
Internal length 10710mm
Internal Width 2480mm
