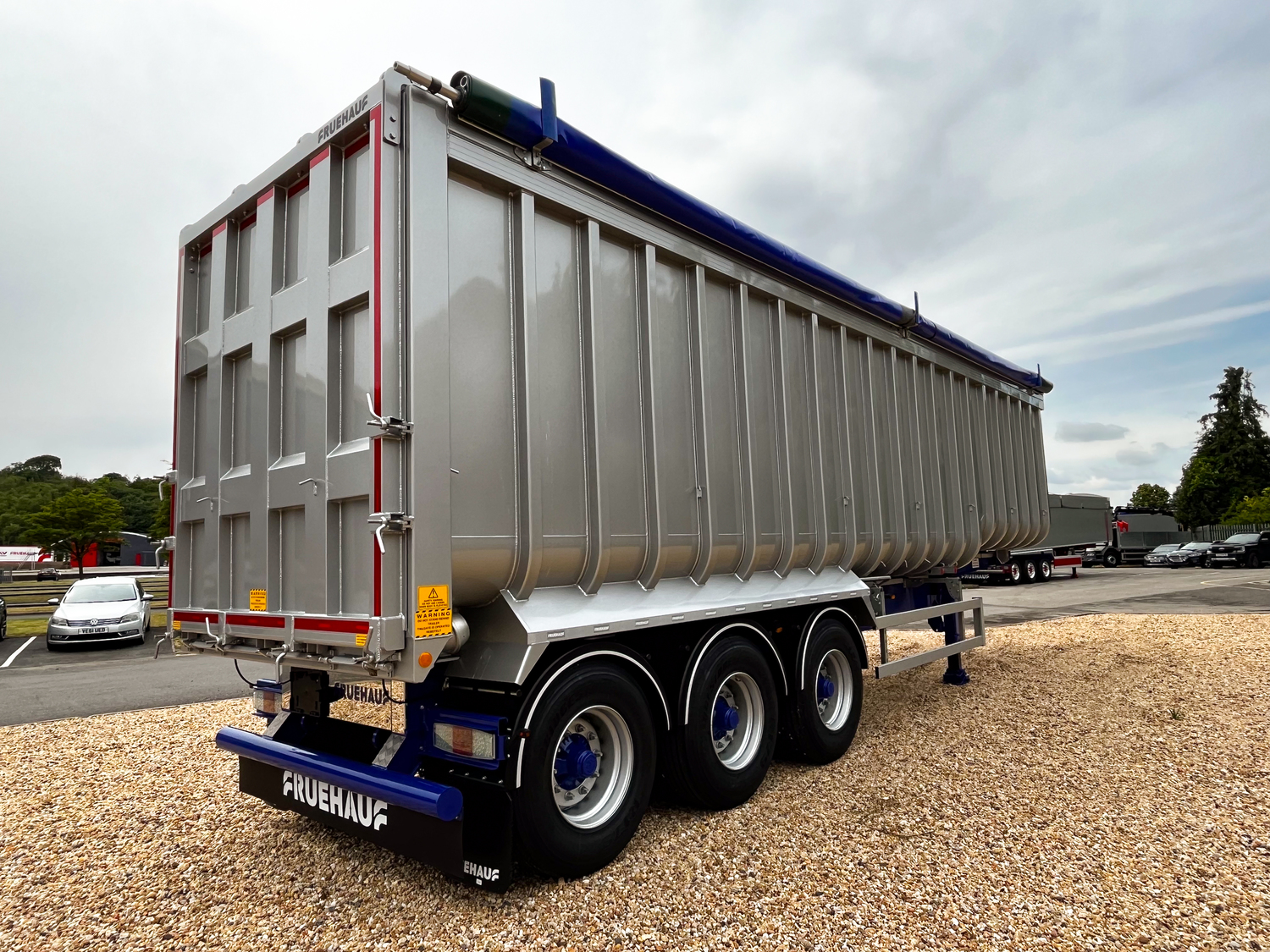

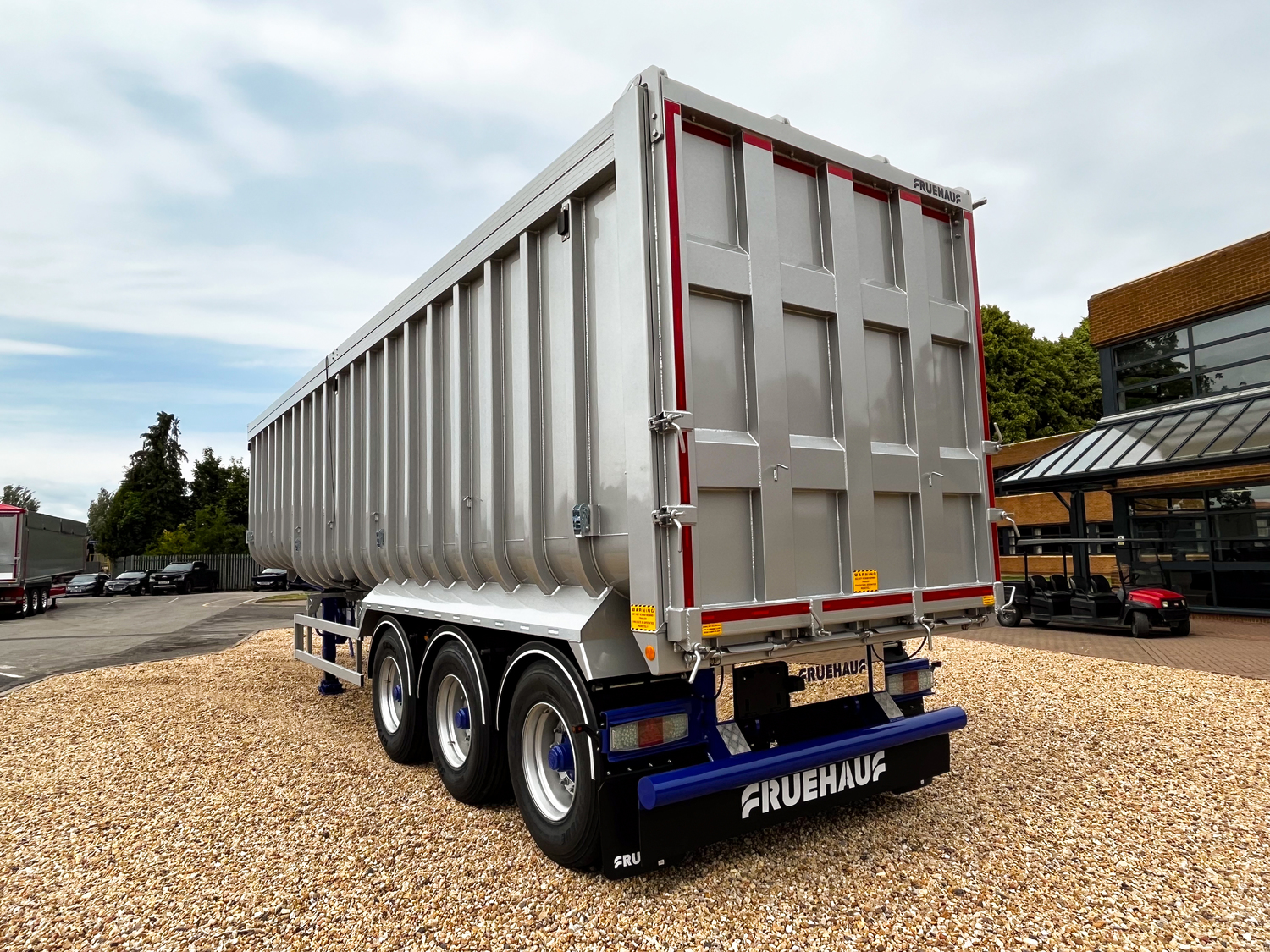

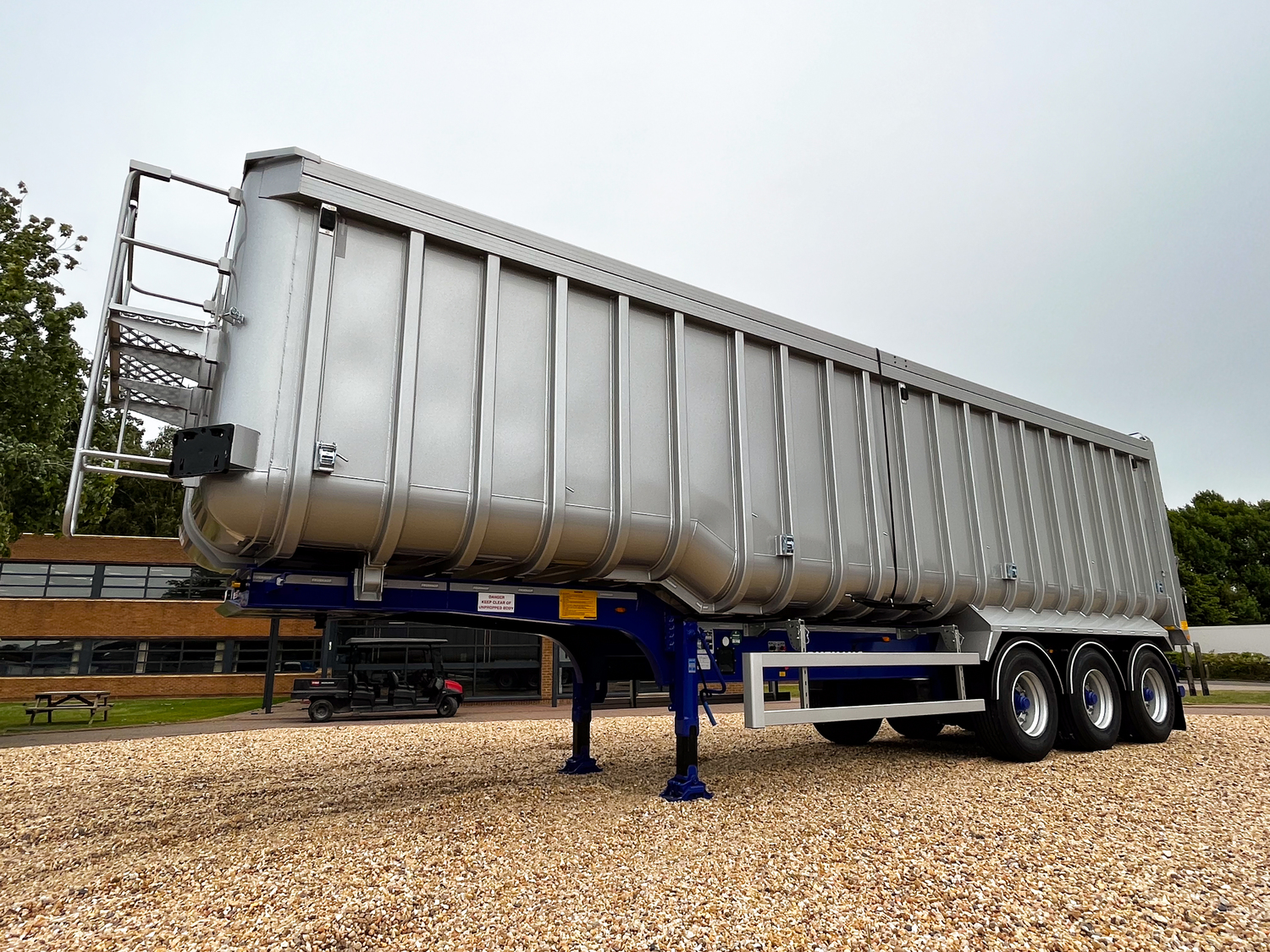

Fruehauf Step Frame Bathtub Trailers Truck For Sale FRU001

Contact Finance

Ready to Book: Fruehauf Step Frame Bathtub

KEY DIMENSIONS:

Overall Length OL 11000

Overall Width OW 2500

Beam Centres BC 1180

Kingpin Position KP 830

Internal Width IW 2300

Axle Track AT 2040

5th Wheel Height FH 1155

Internal Length IL 10700

Axle Centres 1&2 AC1 1310

Landing Gear Pos. LG 2400

Body Height Front BH1 2000

Axle Centres 2&3 AC2 1310

Wheelbase WB 7245

Body Height Rear BH2 2200 Lift Axle yes

Neck(Inc. Rubplate) ND 325

Rear Overhang RO 510

Cubic Capacity (Yrds) 67

Rear Deck HeightRD1330

Step HeightSH200

Kingpin 15000 kgs

Suspension 24000 kgs

Gross Trailer 37500

Features:

Chassis

Fabricated "I" beam with 4 deep section box crossmembers at rear

8mm upper coupler with bolt in 2" kingpin at 1M from body front.

1180mm beam centres

Axles & Suspensions

SAF INTRADISC (430MM SK7) with 120mm offset wheels

Dump valve

Alcoa Durabrite 120mm offset aluminium wheels c/w 385/65R22.5 tyres

Aluminium mudwings integral with body

Dacromet coated wheel nuts

Brakes

2 line air brakes with "C" type couplings on front crossmember. Load sensed system.

Wabco EBS 2S2M brake system powered through the ISO 7638 and the 24N connectors

Roll Stability fitted (activated)

Spring brake chambers to axle manufacturers recommendations

No green brake system warning light

Aluminium air reservoirs.

Electrics

24V electrical system with 24S, 24N and ISO 7638 permanent connections

FASS1 trailer wiring system, rated IP68, with single rear junction box.

Rear lights mounted on mudguard brackets on std wheelbase

Full LED 756 rear lights withs side repeaters

3 LED side markers per side plus "Finger"marker (bulb only) acting also as combined front & rear outline markers.

Ancillaries

Plastic number plate holder

2 speed legs with compensating feet, 24 tonne lift capacity, 50 tonnes static cap

Black plastic toolbox, offside behind suspension.650mm long x 500mm wide x 480mm deep

Bodywork

"U" shaped body with continuously welded ribs at 490mm nominal pitch

Front bulkhead and side walls 4mm. 305mm bottom radius extrusion 5mm.

130mm x 90mm box section top rail

Floor

6mm alloy floor front to rear

8mm alloy floor rear 1660mm (approx)

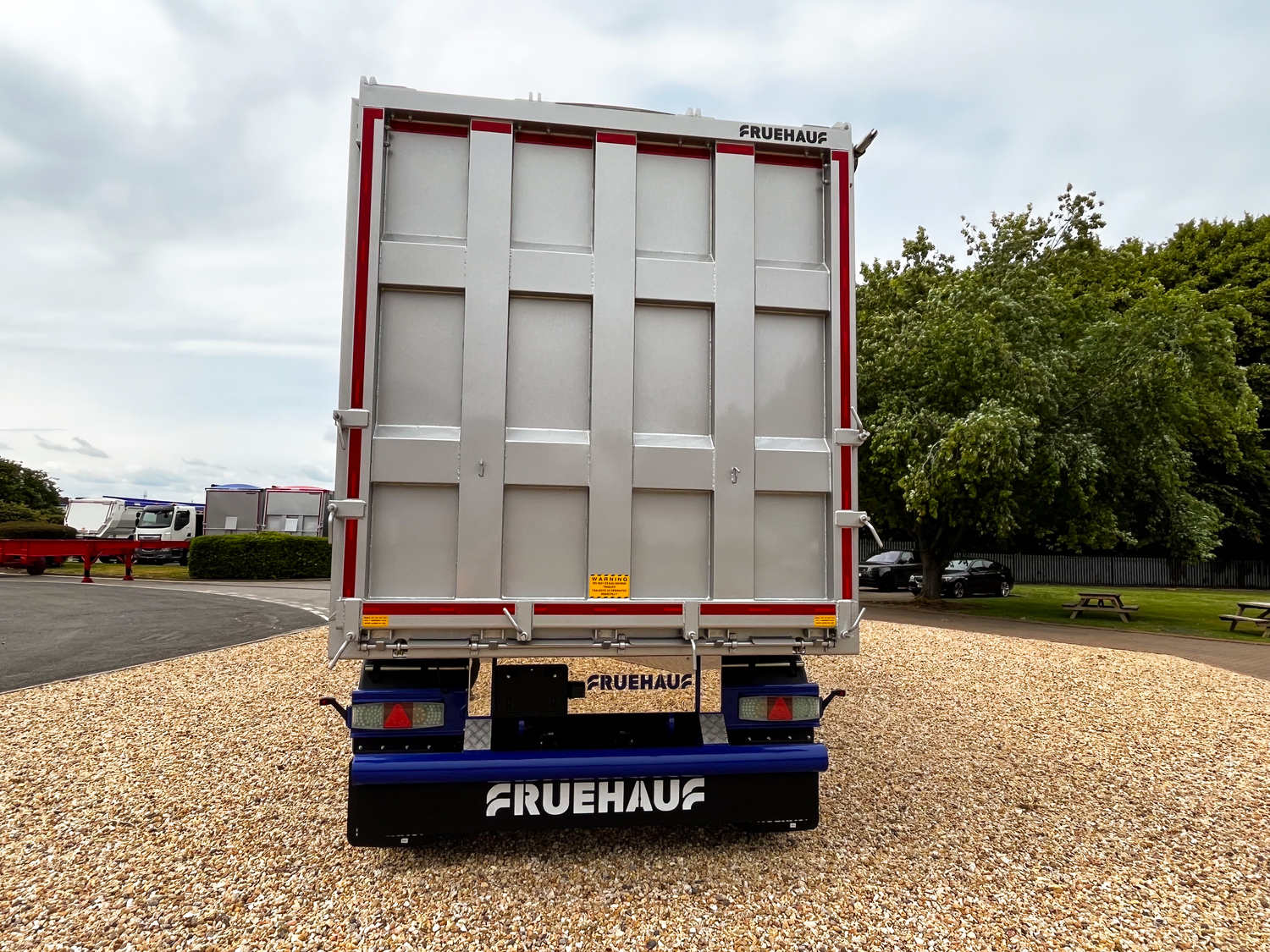

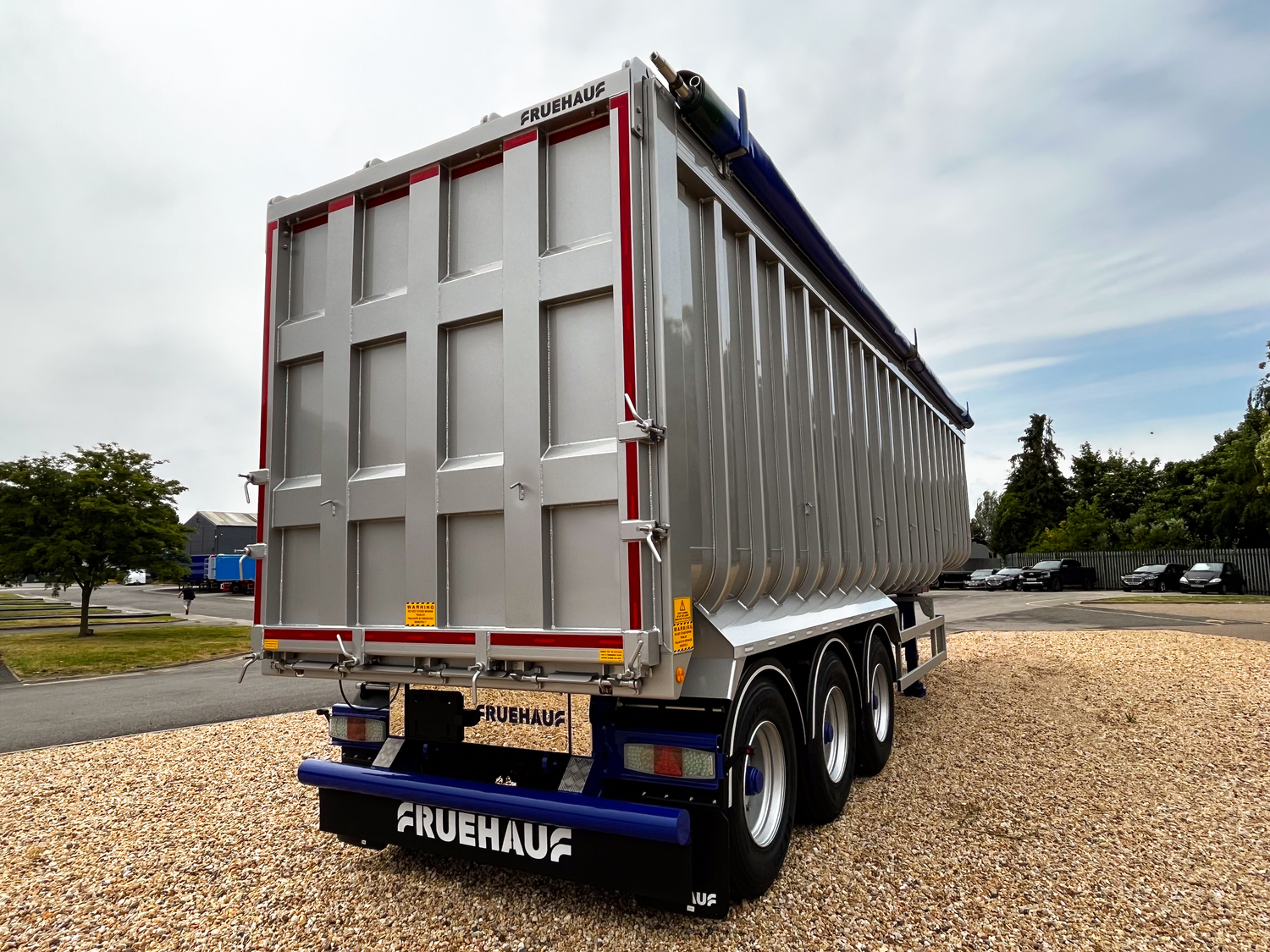

Tailgate

4mm tailgate

Double Kick off hinge

Tailgate locking bar with 5 tabs

No rungs across tail-gate

Clamps (one pair at side and one pair at bottom)

Body Variations

Rack and pinion operated hatch with aluminium cover. Grain sock included

No external steps at rear

Loose step-ladder and tail-gate prop for access into body

Shovel rack on front - near side

No internal steps at rear

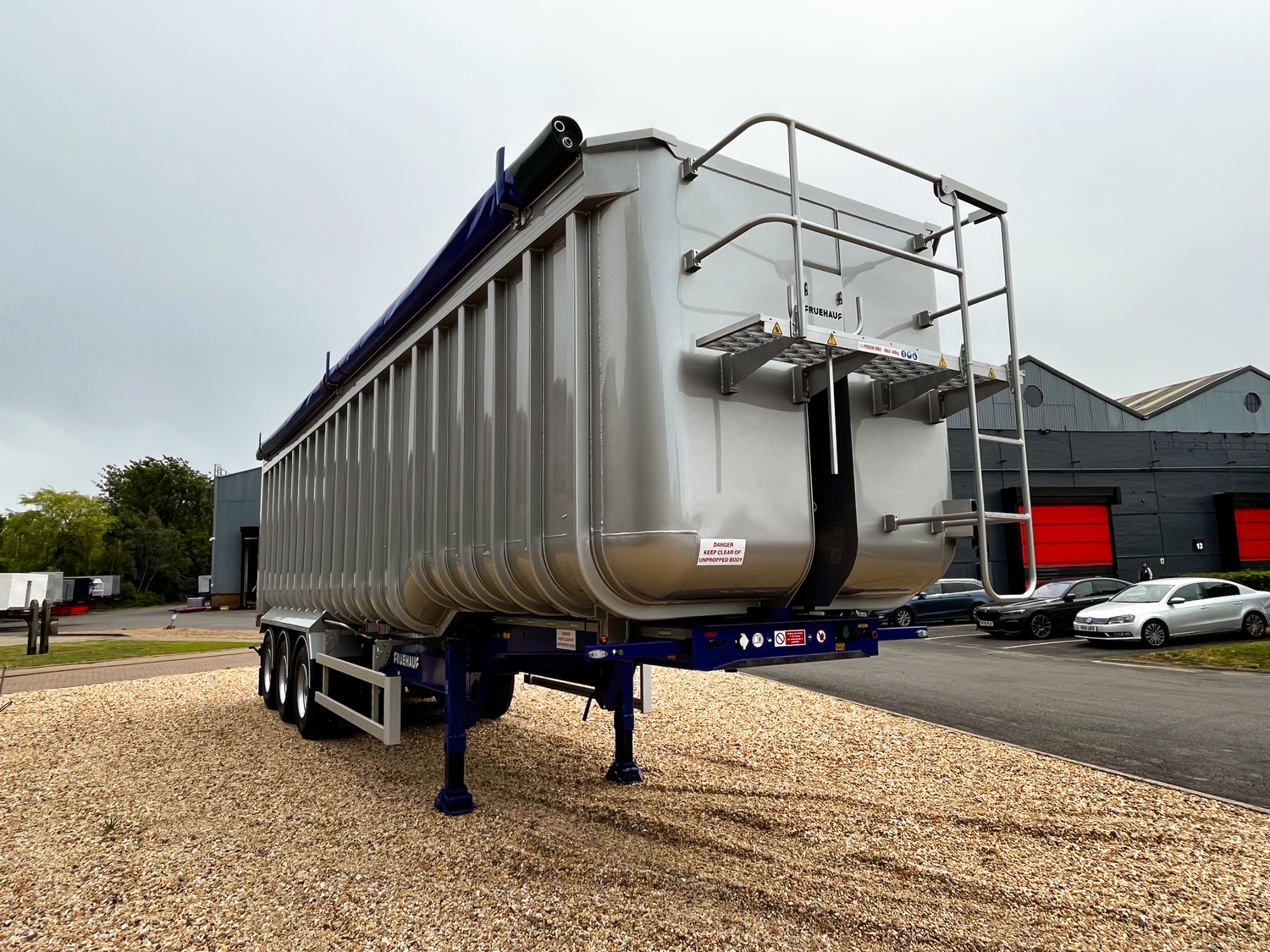

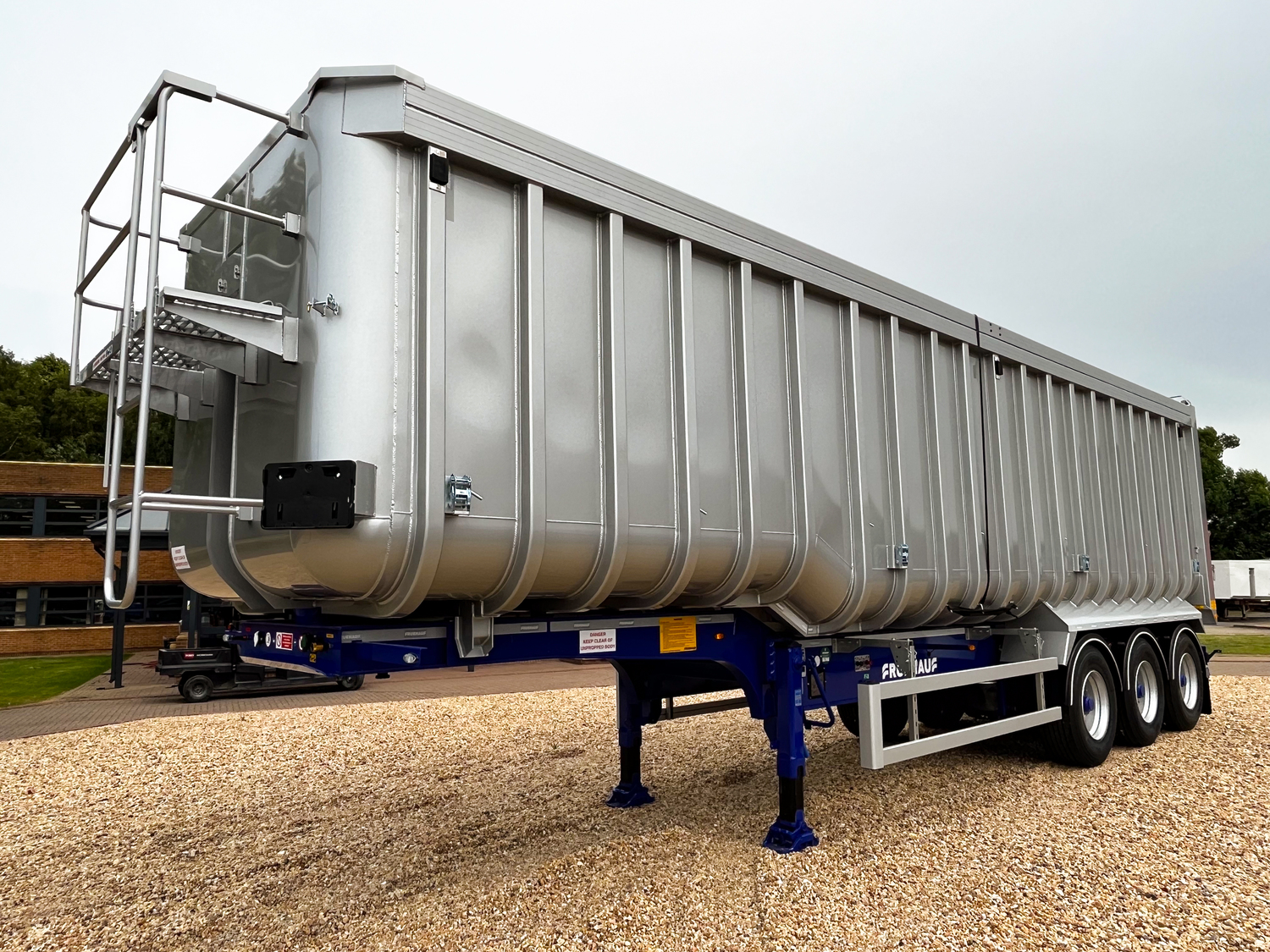

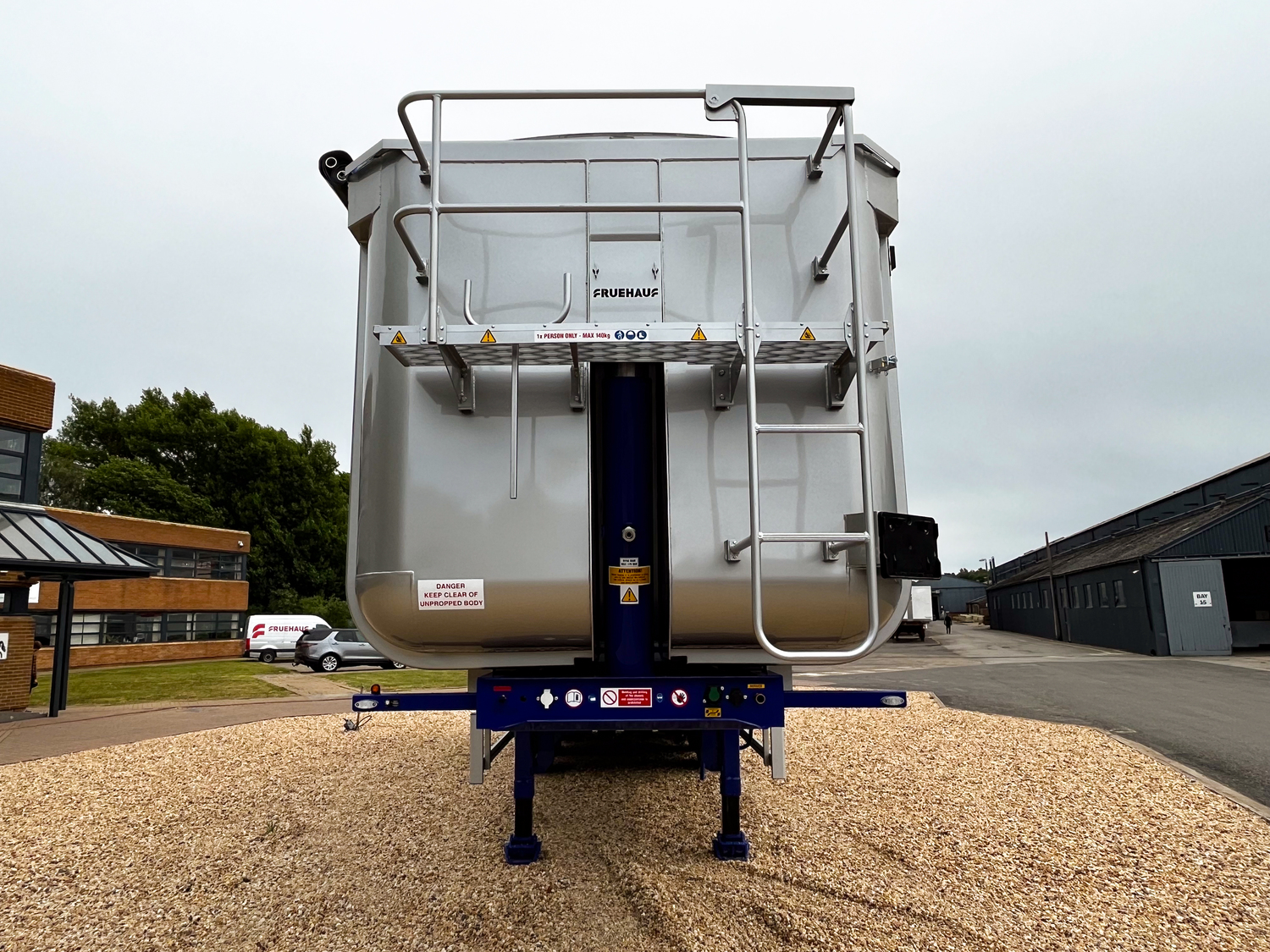

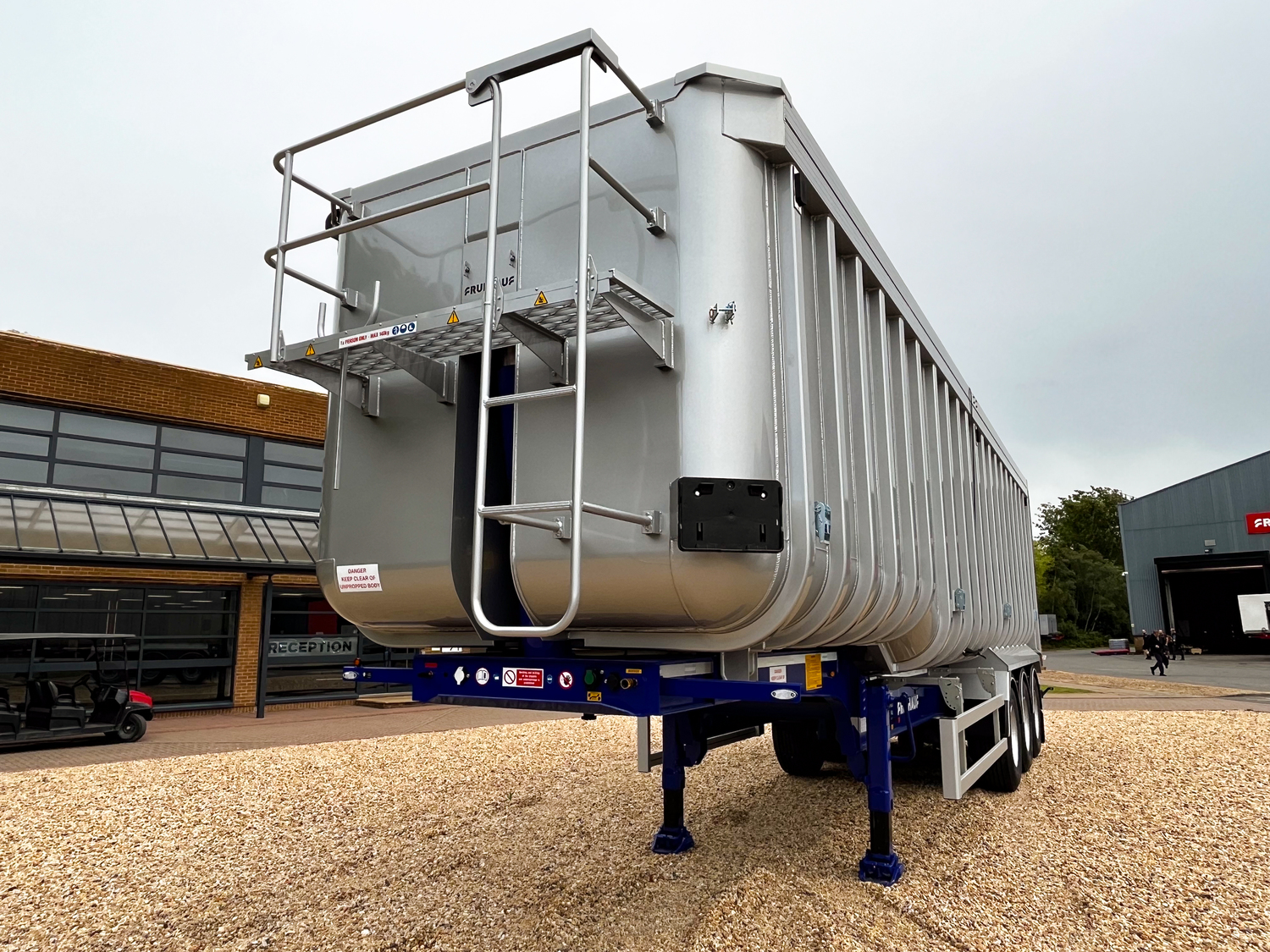

Front access-combined ladder and walkway. Ladder on offside

Hydraulics

Single doghouse mounted ram with 1" screw type male hydraulic coupling

Rubber Cover flap over top of ram housing

The MV Commercial Team

Chassis Information

Make:	Fruehauf
Model:	Step Frame Bathtub
Body type	Trailers
Axle Config:	3 Axle Trailer
Registration:	FRU001
Total height	3530mm
Total length	11000mm

Body Information

Body type	Trailers
Body width	2500mm
Body length	11000mm
Body height	2200mm
